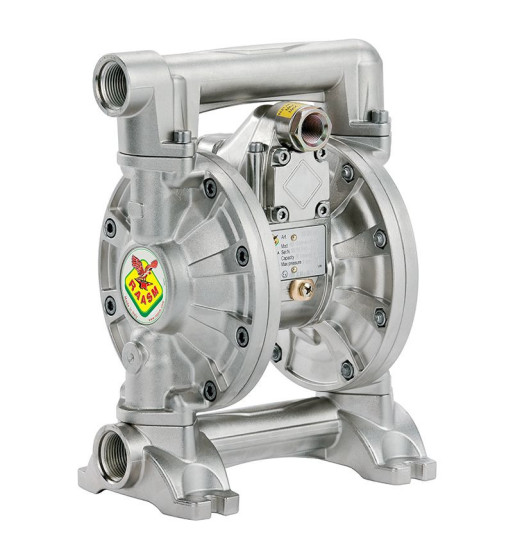

Aluminiowa pompa membranowa serii AB-34 RAASM
2 460,00 zł
Cena brutto
| Flow rate | 70 l/min |
| Ratio | 1:1 |
| Compatible fluids | water, mineral-vegetable oils, diesel fuel |
| Pump material | aluminum |
| Ball valve material | Hytrel® |
| Air inlet connection | G 3/8" (f) |
| Fluid inlet-outlet connection | G 3/4" (f) x G 3/4" (f) |
| Air working pressure | 2 ÷ 6 bar |
| Max supply pressure | 8 bar |
| Average air consumption | 500 l/min |
| Noise level | 75 dB |
| Fluid temperature | -10 ÷ +90 °C |
| Max solids diameter | ø 1,5 mm |
| Suitable for drums or tanks | modular |
| Suction-delivery ball valve with spring | ball valve with spring |
| Packing | No. 1 - 0,015 m3 |
| Weight | 8 kg |
33/2011NHHV2 - Pompa membranowa 1:1 70l/min., uszczelnienie NBR, przeznaczona do wody, oleju silnikowego, oleju przepracowanego, oleju napędowego, oleju roślinnego. Ciśnienie pracy 2-6 bar. max 8 bar. Złącza F3/4" x F3/4".
| Flow rate | 70 l/min |
| Ratio | 1:1 |
| Compatible fluids | water, mineral-vegetable oils, diesel fuel |
| Pump material | aluminum |
| Ball valve material | Hytrel® |
| Air inlet connection | G 3/8" (f) |
| Fluid inlet-outlet connection | G 3/4" (f) x G 3/4" (f) |
| Air working pressure | 2 ÷ 6 bar |
| Max supply pressure | 8 bar |
| Average air consumption | 500 l/min |
| Noise level | 75 dB |
| Fluid temperature | -10 ÷ +90 °C |
| Max solids diameter | ø 1,5 mm |
| Suitable for drums or tanks | modular |
| Suction-delivery ball valve with spring | ball valve with spring |
| Packing | No. 1 - 0,015 m3 |
| Weight | 8 kg |
